spring boot給我們提供了很多便利之處,包括spring boot內置了tomcat,所以我們一般啟動都是spring boot內置的tomcat,用HTTP請求進行訪問,但是http請求并不安全,由于我們對項目應用的權限認證變得更加謹慎,需要用到https請求,自己新建了一個spring boot 項目進行測試,現在將怎么新建spring boot工程和使用https請求以及在此過程中遇到的問題記錄一下。

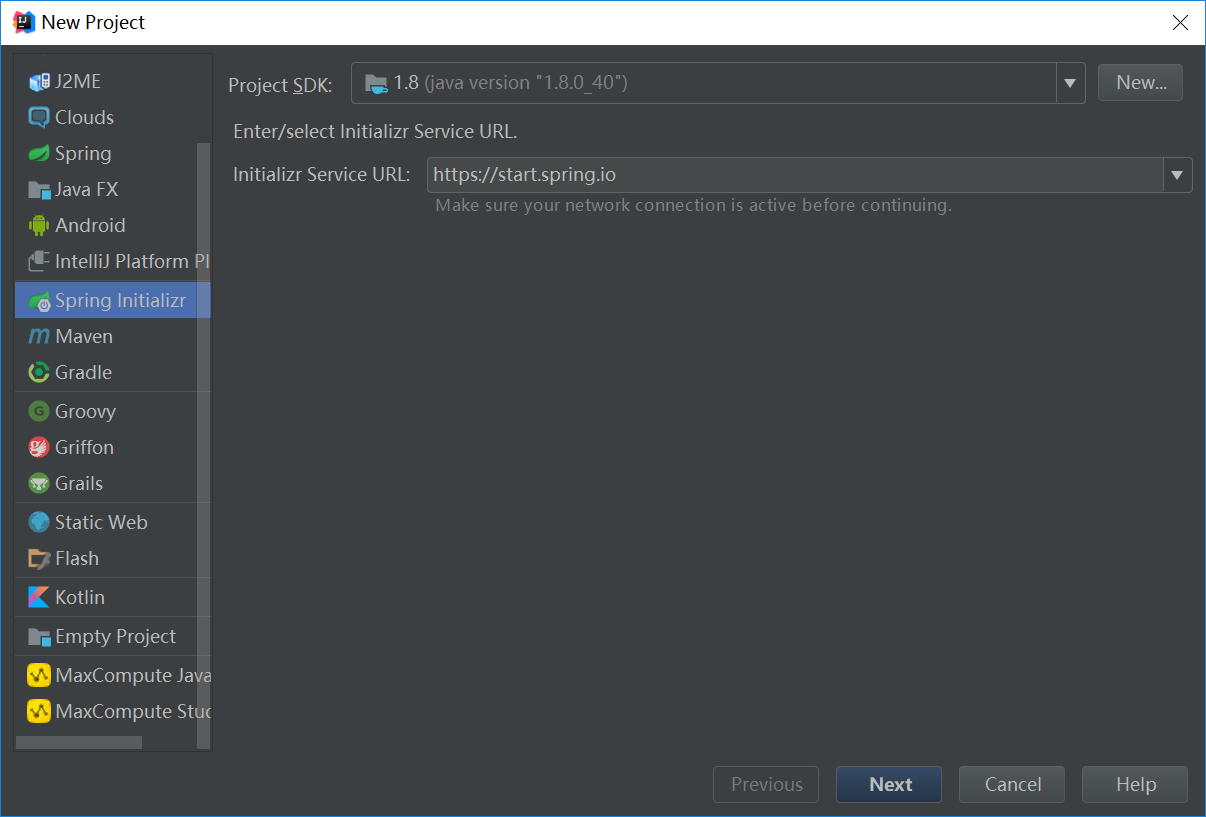

1.創建一個項目,創建時選擇Spring Initializr,然后Next

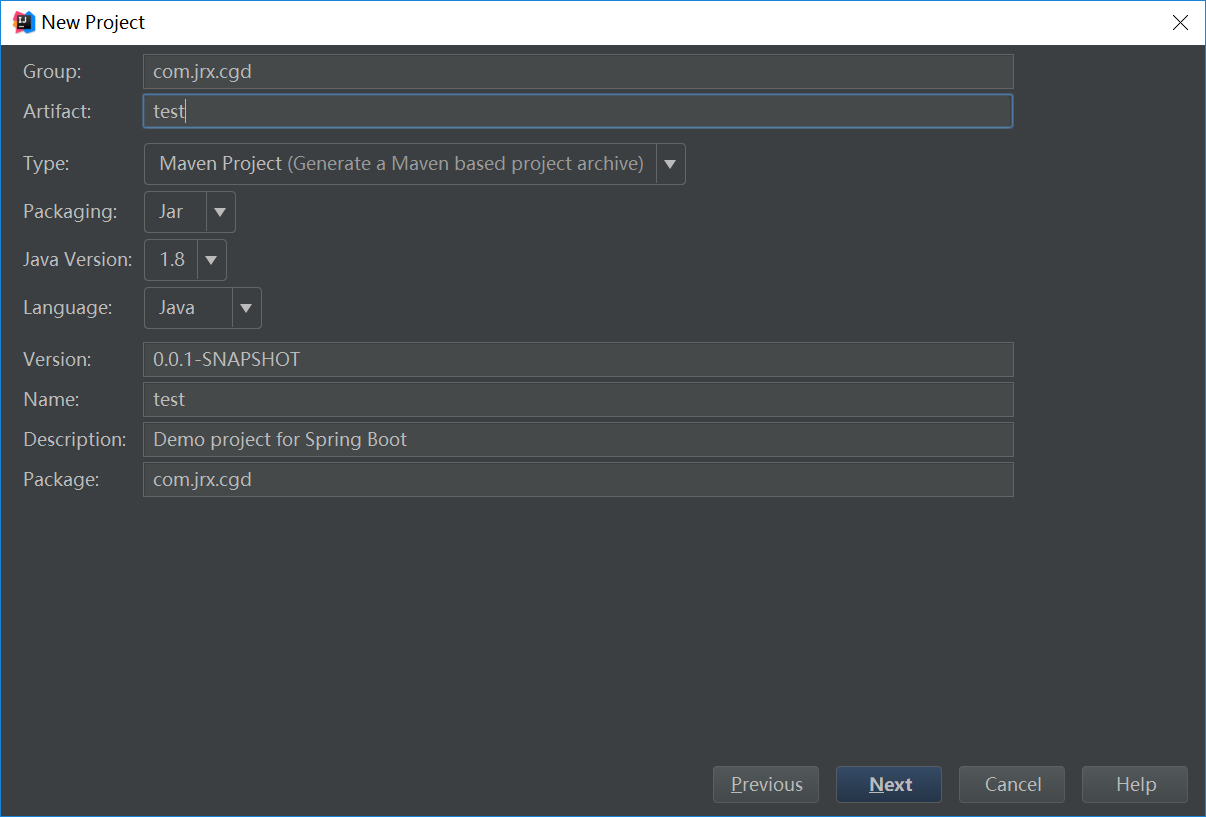

2.填寫項目信息

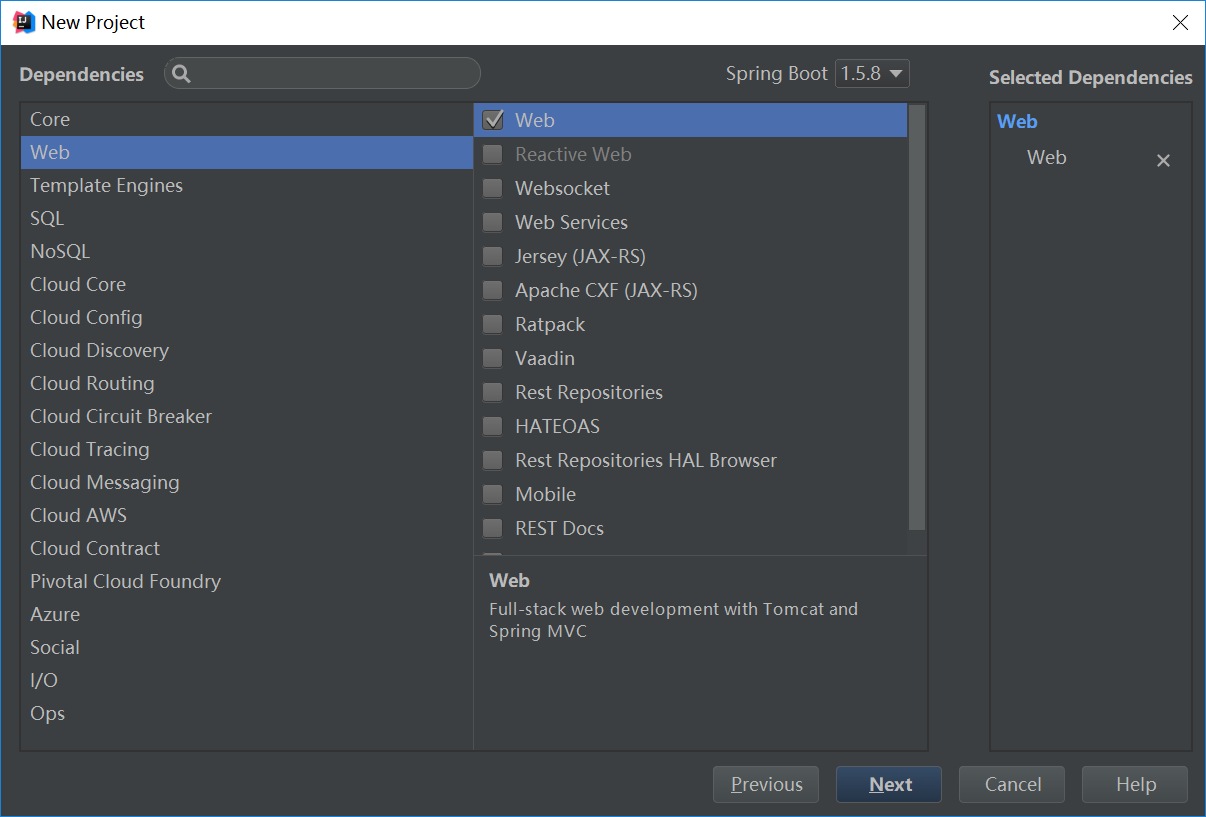

3.選擇web工程

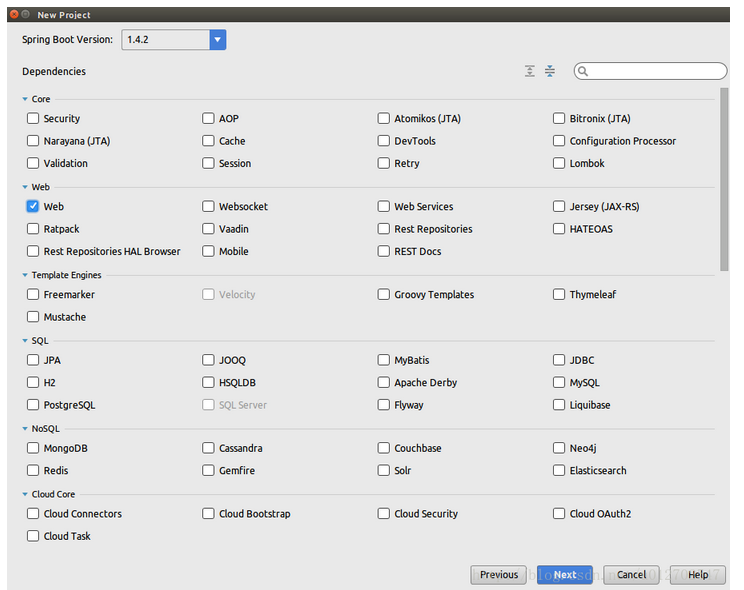

注:我的intelij版本可能比較低,出現的是這樣的,但是有的可能會出現下圖的,都是一樣的

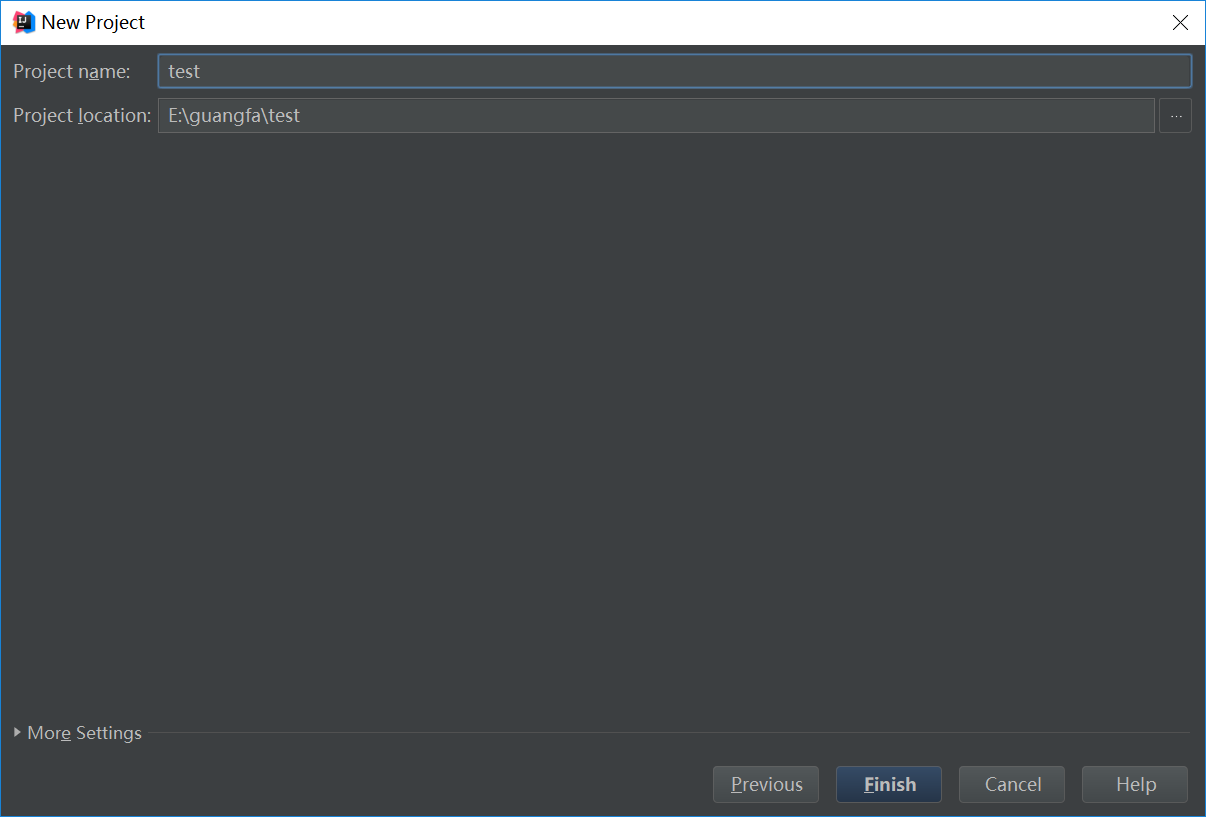

4.填寫工程名字點擊finish
ok,一個新的web工程就建好了,下載依賴的過程比較慢
我們新建的是一個web工程,可以在項目的入口類加上@RestController注解,使之變?yōu)橐粋€(gè)Controller,然后里邊提供一個地址轉換方法
@RestController @SpringBootApplication public class TestApplication {public static void main(String[] args) { SpringApplication.run(TestApplication.class, args); } @RequestMapping(value = "/",produces = "text/plain;charset=UTF-8") String index(){ return "Hello Spring Boot!"; } }

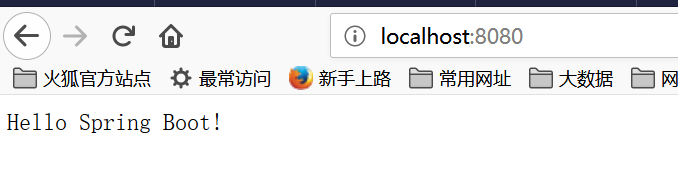

啟動main方法,訪問http://localhost:8080/(查看啟動日志時可以發現默認的端口號是8080)可以看到頁面顯示
我是自己生成的ssl證書,當然這個證書是不被客戶端認可的

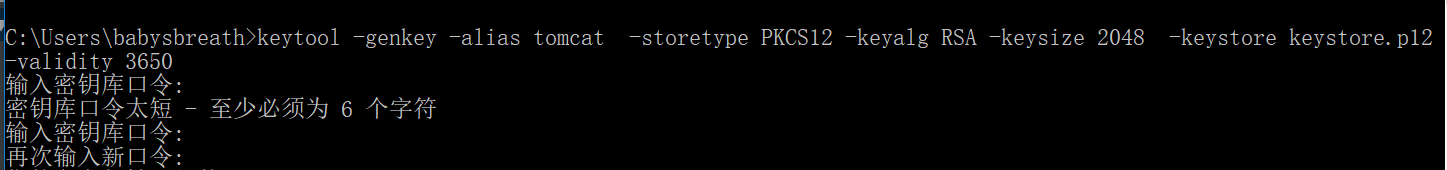

1.打開cmd,輸入生成證書的命令
keytool -genkey -alias tomcat-storetype PKCS12 -keyalg RSA -keysize 2048-keystore keystore.p12 -validity 3650
關于這幾個參數的解釋如下:
1.-storetype 指定密鑰倉庫類型
2.-keyalg 生證書的算法名稱,RSA是一種非對稱加密算法
3.-keysize 證書大小
4.-keystore 生成的證書文件的存儲路徑
5.-validity 證書的有效期
2.輸入密鑰庫口令

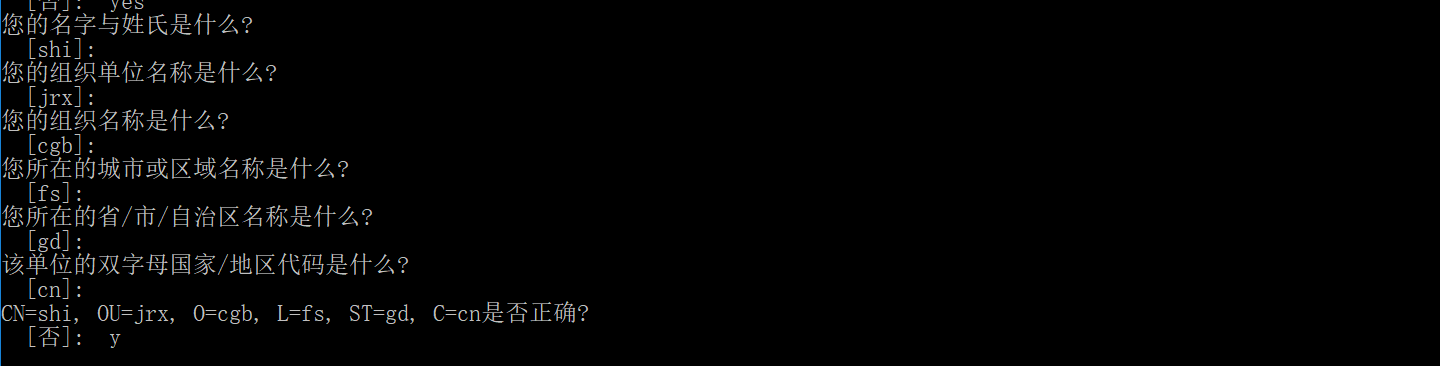

3.依次填寫證書相關的信息

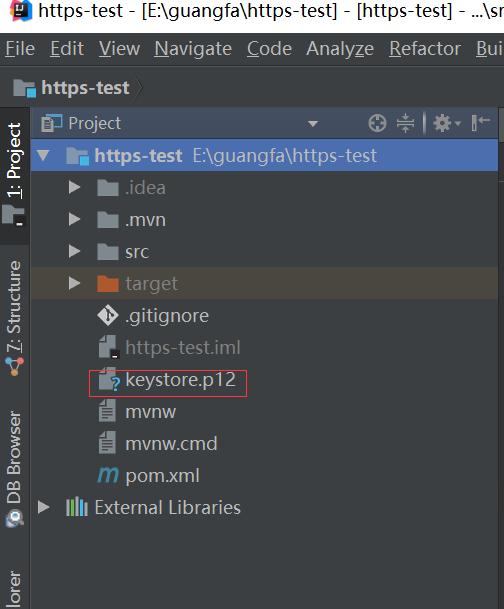

完成之后,系統的當前用戶目錄下會生成一個keystore.p12文件,當然你在生成證書的時候可以改變證書的名稱,那么相應的系統用戶目錄下就會生成相應的文件,將keystore.p12文件拷貝到我們項目的根路徑下,項目的結構如下:
4.修改application.properties文件,添加HTTPS支持
server.ssl.key-store=keystore.p12 server.ssl.key-store-password=123456 server.ssl.keyStoreType=PKCS12 server.ssl.keyAlias:tomcat
注:這里的key-store-password就是我們生成ssl證書時設置的密鑰庫的口令
此時,我們的工程就支持了https請求,我們就可以啟動項目的main方法,查看啟動時的日志會發現默認的端口依舊是8080,因?yàn)槲覀儾](méi)有額外設置https的端口號,訪問https://localhost:8080/
注:因?yàn)槲矣玫氖亲约荷傻膕sl證書,所以https請求是不被客戶端識別的,我用的是火狐瀏覽器,在警告頁點擊 高級按鈕,點擊添加例外,點擊確認安全例外就可以正??吹巾?yè)面顯示的內容,所以當你用瀏覽器進行https請求時未正常顯示并不是我們的項目有問題,修改瀏覽器的安全認證配置就行了
我們已經習慣用http請求訪問,此時我們的項目支持的是https請求,為了方便我們可以將訪問時的http請求轉換成https請求
在main方法中添加注解bean,代碼如下:
@RestController @SpringBootApplication public class TestApplication {public static void main(String[] args) { SpringApplication.run(TestApplication.class, args); } @RequestMapping(value = "/",produces = "text/plain;charset=UTF-8") String index(){ return "Hello Spring Boot!"; } @Bean public EmbeddedServletContainerFactory servletContainer() { TomcatEmbeddedServletContainerFactory tomcat = new TomcatEmbeddedServletContainerFactory() { @Override protected void postProcessContext(Context context) { SecurityConstraint constraint = new SecurityConstraint(); constraint.setUserConstraint("CONFIDENTIAL"); SecurityCollection collection = new SecurityCollection(); collection.addPattern("/*"); constraint.addCollection(collection); context.addConstraint(constraint); } }; tomcat.addAdditionalTomcatConnectors(httpConnector()); return tomcat; }@Bean public Connector httpConnector() { Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol"); connector.setScheme("http"); //Connector監聽的http的端口號 connector.setPort(8080); connector.setSecure(false); //監聽到http的端口號后轉向到的https的端口號 connector.setRedirectPort(8081); return connector; }}
注:我們知道spring boot內置的tomcat啟動時的默認的端口號時8080,我們現在需要將http請求轉換成https請求,所以一定要區分端口號,我們?cè)诖a中將http的端口號設置為8080,在application.properties添加https的端口號
server.ssl.key-store=keystore.p12 server.ssl.key-store-password=123456 server.ssl.keyStoreType=PKCS12 server.ssl.keyAlias:tomcat server.port=8081

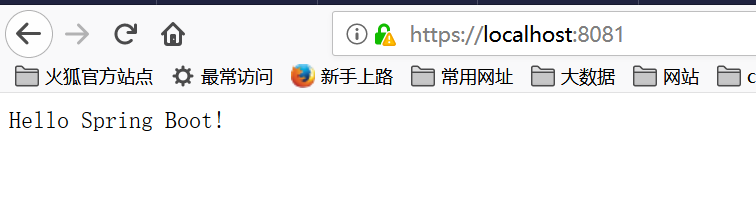

啟動項目,我們?cè)L問https://localhost:8081/,(同時還是需要設置瀏覽器的安全認證的)頁面可以正常顯示說明項目是支持https請求的
訪問http://localhost:8080/,我們可以看到頁面的url變成了https://localhost:8081/,頁面也可以正常顯示,說明我們的需求解決了,可以將http請求轉換成https請求。
如果我們想要項目同時支持http和https請求,就是說我們用http請求時不再轉換成https請求,同時還支持https請求,很簡單,我們只需要將代碼中的connector.setSecure(false)中的false改成true就可以了,代碼如下:
@RestController @SpringBootApplication public class TestApplication {public static void main(String[] args) { SpringApplication.run(TestApplication.class, args); } @RequestMapping(value = "/",produces = "text/plain;charset=UTF-8") String index(){ return "Hello Spring Boot!"; } @Bean public EmbeddedServletContainerFactory servletContainer() { TomcatEmbeddedServletContainerFactory tomcat = new TomcatEmbeddedServletContainerFactory() { @Override protected void postProcessContext(Context context) { SecurityConstraint constraint = new SecurityConstraint(); constraint.setUserConstraint("CONFIDENTIAL"); SecurityCollection collection = new SecurityCollection(); collection.addPattern("/*"); constraint.addCollection(collection); context.addConstraint(constraint); } }; tomcat.addAdditionalTomcatConnectors(httpConnector()); return tomcat; }@Bean public Connector httpConnector() { Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol"); connector.setScheme("http"); //Connector監聽的http的端口號 connector.setPort(8080); connector.setSecure(true); //監聽到http的端口號后轉向到的https的端口號 connector.setRedirectPort(8081); return connector; }}
啟動項目,我們?cè)L問https://localhost:8081/,頁面可以正常顯示說明項目是支持https請求的
訪問http://localhost:8080/,我們可以看到頁面的url并沒有轉換成https請求,頁面也可以正常顯示,說明我們的需求解決了,可以同時支持http和https請求。
如有問題,歡迎指正?。。。?/p>
